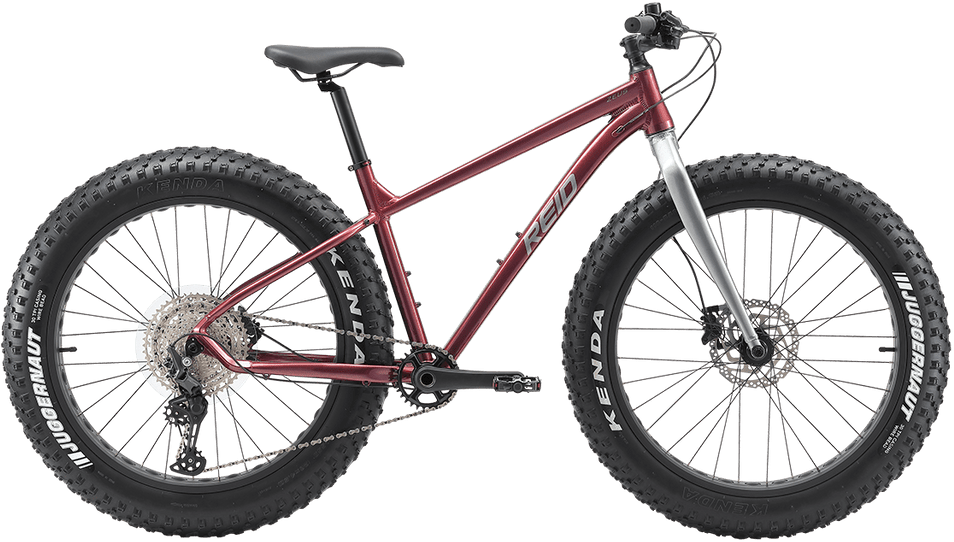

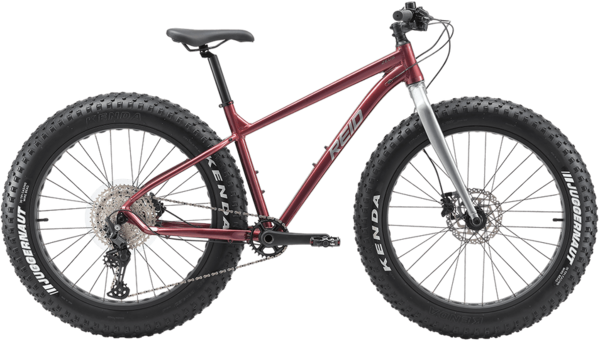

Reid Zeus - Carbon Fork

Reid Zeus - Carbon Fork
  • Color: Plum
$1,699.99
Color: Plum
Size: Select size
Wheel Size: 26-Inch
Please select options Unavailable

Details

Our top of the range Fat Bike, the Zeus is built for riders looking to conquer deep snow, blistering sand, viscous mud or the sketchiest of rock gardens. A true premium experience, the toughest bike we make is ridden by the toughest man we know, Arnold Schwarzenegger! Zeus US version also has an impressive Carbon fork.

The Zeus Fat Bikes run big 4.5" tires for amazing grip and the ability to traverse terrain that regular bikes can’t even dream of attempting. If you want to explore new trails, rugged terrain and a riding experience like no other – the Zeus Fat Bikes will take you there.

Sizes:
SizeSmall (38cm)Medium (43cm)Large (48cm)Extra Large (53cm)
Top Tube Length 588 598 613 628
Seat Tube Length 380 430 480 530
Head Tube Length 120 120 130 140
Seat Tube Angle 73 73 73 73
Head Tube Angle 71 71 71 71
RC Length 460 460 460 460
BB Drop 60 60 60 60
Fork Offset 45 45 45 45
Front Centre 641 651 666 681
Wheelbase 1094 1104 1119 1135
Full Fork Length 451 451 451 451
Sizes:
SizeRange (cm)Range (ft & in)
Small 160 - 167 5'3" - 5'6"
Medium 167 - 178 5'6" - 5'10"
Large 178 - 185 5'10" - 6'1"
X Large 185 - 193 6'1" - 6'4"

Specs

Frame 6061 alloy with integrated headset
Fork Full Carbon A head Fat Bike fork 15mm
Wheels Reid double-wall alloy 36H
Hubs KT Alloy 6 bolt quick release 36H
Tires Kenda K1151 26X4.5"
Bottom Bracket Sealed bearing external
Chainrings Prowheel 30T 170mm
Shifters Shimano Cues SL-U6000 11 speed
Rear Derailleur Shimano Cues RD-U6000 shadow + 11 speed
Cassette/Freewheel Shimano CS-LG300 11-50T
Chain KMC X11 11 speed
Brakes Shimano MT501 hydraulic disc
Brake Levers Shimano MT501 hydraulic disc
Handlebars Oversize riser bar 700mm x 15mm rise
Stem Alloy oversize A head MTB stem 70mm
Seatpost Alloy micro adjust 31.6mm
Saddle Reid sport
Pedals Alloy platform

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Plum / Medium / 26-Inch 05060779754653 1214307243 REI20472328M
Plum / Large / 26-Inch 05060779754677 1214307248 REI20293180L
Plum / X-Large / 26-Inch 05060779754660 1214307253 REI21212626L
